The Perfect Paddle

So you are ready to buy a high-zoot carbon fiber paddle and tweak it to make it all yours. Please don’t tell me you already bought one and it’s precut. If you did, skip way down to the taping section. This part will just make you uneasy. If you’re considering a wood paddle you’ll have to order it precut. In that case you need to borrow a paddle to make the measurements and the decisions we’re going to go through.

What’s the likelihood that you’re going to get a paddle that just right for you? A lot better than it used to be, when you had mostly brand choices and everyone said to cut the paddle shaft so the tip of the handle was one shaka over your head. Now you can get a lot more variation on paddle blade width, angle, length, shape and material as well as choices in shaft flex, shape, diameter, material and handle style. But with all those choices you need more than just a guess as to what’s going to work for you.

Let’s get you into the ballpark. Feel free to ask questions in the forum discussion on the this article as well, if I don’t have the answers I’ll go to the same industry sources that I drew the information for this article from. What? You thought I know all this stuff?

Paddle length is critical to a number of factors, and getting it right isn’t easy. Most people I know who have been doing SUP more than a year or two have been through several paddles, mostly experimenting with length, though blade size and shape, and shaft flexibility are actually just as important. We’ll focus on those four factors and toss in the other parameters when necessary. Then we’ll tell you how to get, cut, and modify a paddle to fit your intended use and your personal characteristics.

You’ll need a helper to make the shaft measurements. the easiest and most accurate way is to prop your board (the board you plan to use the paddle with the most frequently) up on some milk crates or some other stand that will hold it higher off the ground than your paddle blade. You can also do it in the water, but it’s likely to be a bit tippy and difficult.

First issue has to do with your intended use. That falls into three broad categories: Surf, cruise and race.

Surfing demands several kinds of paddling–explosive power to get you into a wave, precise paddle placement and angle to help you execute turns, and pulling power to help you punch out through whitewater and peaking waves. The shaft has to be particularly strong to withstand the demands of surfing and the occasional fall across the paddle. Experienced SUP surfers tend to not pay too much attention to paddle choices, but they generally have a “favorite” paddle that they’ve gravitated to, in other words they chose a paddle by using a lot of them, and now there’s probably $900 worth of carbon fiber sitting unused in the garage. Big, powerful surfers tend to have somewhat larger blades. The most powerful sometimes like the huge blades like the Quickblade Peahi. But you’ll also see some powerful surfers with very small blades. It comes down to their preference for pulling into a wave. Some like to make a few powerful strokes. Some prefer a higher cadence. A higher cadence makes it easier to catch more marginal waves, while those that wait for the big, perfect faces can enter the wave with one or two hugely powerful strokes.

If you are a beginning SUP surfer, even if you’re experienced at surfing, you will probably prefer a smaller blade, something in the range of 8.5″ wide by 17-18″ long–100 to 105 square inches). You may even prefer one of the super-small blades like the Kialoa Methane (8″X16.5″ — 97 square inches).

The length of surf paddle shafts tends to be shorter than cruising or racing paddles. You always want to get power into the blade, and that means you want your arm no higher than your shoulder to get early power. You’re not looking to extend the stroke, in fact all strokes should be short, from the shoulder of the board to your feet. Most surfers do not use a punching stroke common to racers (explained below) so a longer shaft is not required.

So measure the paddle based on having your fist at the same level as your shoulder with the blade under the board and the paddle shaft straight down from your extended arms. You can even go a little shorter than that, with your hand down an inch or so below the level of your shoulder. Have your helper measure the distance from your hand to the bottom of the rail of your board. You want the beginning of the upper curve of the paddle to be right at the rail. Mark the point on the shaft to be cut by measuring the distance your helper got (from the bottom of the rail to your fist) from the upper curve of the paddle blade. You might want to check your work by doing a test cut a few inches higher than your actual measurement.

Racing is a completely different animal. Most racers use one of two strokes: Either a stiff-armed press down for the blade from a point a little forward of the shoulder of the nose, or a punching stroke, where the upper hand is initially close to your chin. The paddle is pushed in the water close to the nose, and then the upper fist is pushed out and down, rotating the body to put shoulders and trunk into play. Both of these strokes require a somewhat longer paddle to fully engage the blade in a further forward position. To measure length you should be on your race board, which is often a thicker board than a surf SUP, and you make the measurement to the rail with the paddle in the forward position of your typical stroke. This will generally add 6 to 10 inches to the length of the paddle over a similar surfing paddle. It is a wise precaution to tape the handle onto the shaft with several wraps of helicopter tape (aluminum tape) to ensure that this added length is comfortable and you are not raising your arm substantially above the level of your shoulder to use it.

Racing blades tend to be small to enable a fast cadence. The stroke is from the nose to the toes. extending your stroke back past the legs doesn’t do very much to help your times. Many racing paddlers use a “chicken wing” paddle raise where you rotate your upper arm down to your waist to raise the blade out of the water. Blade control is important in a racing paddle, for that reason they tend to be T handles which give a more positive sense of blade angle than the ergonomic grips.

Shaft flex for a racing paddle can be stiff to medium. If you are doing longer races you’ll want some flex to save your shoulders. If you mostly do four- to five-mile sprints you might want a stiffer shaft. You get more power into the beginning of the paddle stroke with a stiffer shaft. A softer shaft spreads the power out more. If you are trying to lift the nose a bit to get maximum acceleration then you need instant power at the grab.

Cruising paddles are roughly between these two extremes, with the determining factor being the kind of paddling you prefer. You never want to be bending at the waist to stroke your cruising paddle–your body should be comfortably erect. You also shouldn’t extend your upper arm above your shoulder. The stroke for cruising tends to be shorter than a racing stroke, from slightly behind the shoulder to the feet. The retrieve is often done by letting the paddle drift back and up, since the “chicken wing” retrieve takes more concentration. Shaft flex is good, and ergonomic handles work very well.

We’ll add some pictures to this article ASAP, just got to get it done. but for now it should give you a good idea of how to cut your paddle for the kind of SUP you do. a well-fitted paddle isn’t a requirement, it’s just a pleasure.

SUP Expeditioning on the Costalegre

Dave Collins is at it again, another interesting (and heavily packed) SUP expedition. Last August we covered his last SUP adventure, a SUP expedition around Cape Scott, the tip of Vancouver Island (http://www.kenalu.com/2008/08/) . This time he’s in tropical waters, the coast of Mexico, but the amount of gear he’s crammed onto his ULI looks about the same. SUP cruising and expeditions are a growing part of the SUP adventure. Let us know about yours. Here’s Dave’s story.

Expedition Report
As I finally scramble out of the surf zone I´m reminded of how impractical it is to paddle a loaded SUP.  I´ve had to go back to shore once already to repack my load—shifted by the hammering surf.  I wave to Elysia to paddle toward me.  At first petrified by the waves, she dug deep and made it out of the surf zone before me.  She´s still a bit wide-eyed, but maintains balance and equanimity in the mild noon chop.  This is her first SUP expedition, and my second.  Our shuttle driver is nowhere to be seen now.  We are alone on the open ocean of the “Costalegre”, the southern coast of the state of Jalisco from Barra de Navidad north to the southern tip of Banderas Bay where Puerto Vallarta is located.  I sense that this realization is still sinking in for Elysia, as I sense that my loaded board is sinking deeper into the water unless I paddle—which is what we begin to do in earnest.

Where are we going to put all this?

Packing up

A rational load

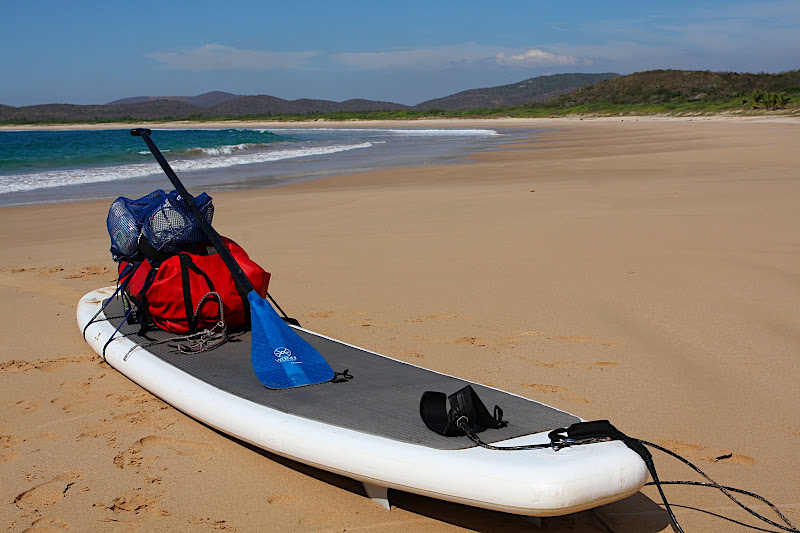

There’s a SUP board down there somewhere

I packed it, I’m gonna use it

Pelicans and a Costalegre Sunset

Only five minutes into establishing a rhythm we sight humpback whales about 100 meters offshore.  In a magical instant two of them breach simultaneously about 60 feet out of the water, exposing some two-thirds of their cetacean mass.  Awestruck and humbled, I wonder if the expedition might all be anticlimactic from here…?  In any case, I take it as  a most convincing sign of an outstanding trip to come.  As Elysia and I look at each other there is a sense that the scene is a metaphor for our union on this long-awaited journey.  “Wow,” is about the only word we can conjure.  The whales cruise south with us for a while longer and then disappear.

Arriving at Punta Soledad

Heavy going

A headwind picks up and the paddling becomes even slower, especially for me as I am carrying at least three times the weight of Elysia and weigh twice as much as she.  My mind is drifting and I´m beginning to fall under the awkward load and increased chop, while she is flying ahead featherlike and laughing.  At me perhaps, but her laugh and lightness are inspiring nonetheless.  With renewed concentration I try to drive thoughts of the outer-world from my mind and drive my board forward.  There is no better moving meditation than this sport and the need to focus is magnified by the load.  With every new stroke thoughts of the economic recession are replaced with concentration on balance, strokes, foot placement and then flashes of the Snickers bar in my camelback.  After two hours of hard paddling we sit on the boards to eat lunch, until I realize that we are drifting north, away from our destination, at a disheartening rate.  There will be no opportunity for lunch on the boards today, and landing on the open ocean is not a viable option either considering the size of the surf and our already slow progress.  We throttle down our Snickers and get paddling once more, but from here on out, due to our, and the ocean´s, conditions, we switch between sitting or kneeling on the boards and paddling standing up.

Look out below

Punta Soledad

Moving the load back made it balance better

Shoot quick while we’re still standing

Stroking for the beach

Some two to three hours later we come upon the aptly named Punta Soledad (Soltitude Point).  A reddish volcanic sea stack capped by agave and Prickly Pear cactus, framed by scrub forest and unrelenting surf, juts out like an exclamation mark ending the phrase, “You are alone now!”  Initially we decide to paddle around it and look for camp, but this strikes me, in a fleeting moment of clarity, as not a very wise idea.  The sun is going down and we are completely exhausted.  Not only should one plan on going about half as fast as a sea kayak on a loaded SUP, one should also count on getting twice as tired.  I suggest we backtrack a bit and grab a protected cove for the night and Elysia agrees.  The first thing we do upon beaching our boards is rip open the dry bag that with yesterday´s leftover pizza in it.  Between mouthfuls we smile, laugh and comment on the bounty and beauty of this beach, which I later discover is named Las Cuatas, or “female companions.”  I´m not female, but I soon switch into my pareo, or beach skirt, the ideal after paddling wear in a tropical climate, and the name seems fitting.

Welcome to our camp

Cocktail hour, thank God

Dusk is upon us as we hike up to get a view of the surroundings, the sunset, and the moonrise—the brightest full moon of the year due to the phenomenon of perigree.  Along the way we spot a fleeting Orange-breasted Bunting, one of the 22 endemic birds found in the Jaliscan Dry Forest, and a group of snorting, scurrying White-nosed Coati, a carnivorous raccoon-like mammal common to the region.  At the top we are so enveloped in the sunset that we don´t notice the moonrise until we turn around to walk back down.  Once again, as with the rising humpbacks, we are stunned beyond words—this time though, my imagination, far from thoughts of anticlimactic occurrences, now explodes with thoughts of infinite possibilities.

Rise and shine

Threading though a basaltic maze

Coves and inlets

Pelican Crossing

The door opens to these on day three, our final day, when we find some secret surf.  This is when the slower and more exhausting travel of SUP-expeditioning gets paid off in waves.  The payoff is abundant this particular day: overhead faces smile in consistent sets, greeted by an offshore breeze.  Elysia bows out gracefully and sets up the camera gear.  I am unduly impressed with her performance on her first SUP expedition and grateful for her company.  I know it won´t be too long before she´ll be joining me not only to enter and exit the surf zone, but to play madly in it…

A little Costalegro shoulder

El Tubo

The invisible man carves a tasty face

A little sunset samba

The SUP Expedition Set-Up
I am testing different gear than that from my first SUP expedition around Cape Scott last July (http://www.kenalu.com/2008/08/) and wearing a lot less gear thanks to the climate. I am using two of Werner´s (www.wernerpaddles.com) new paddles, the Advantage and the Carve.  The Advantage is Werner´s new touring/racing SUP blade, and the Carve is their new specialized surfing paddle.  Compared to all other SUP paddles I´ve tried, Werner is dominating the industry hands down.  All those years of R&D in the paddle industry have transferred directly into their SUP line, offering superior quality, diversity and durability.

To start, the ABS Palm-style grip on both the paddles just feels right.  And ergonomically it makes all the difference for stroke control while also lending to less strain on the wrist and hand joints at the end of the day.  The attention to detail—just the right width, thickness, and angle of the grip—make all the difference, especially after taking some 10,000 strokes.  Also, although I´m still quite fond of my Werner Spanker, I find the tear drop blade design on the Advantage and Carve more sophisticated and fluid.  First of all, the surface area of the blade is now more elongated throughout and not as wide at the bottom of the blade.  This reduces torque and makes for faster cadence, especially faster on the smaller Carve blade, which is ideal for making short, rapid strokes where they count—up front—when you need to build hull speed instantly to drop into a wave.  The dihedral of both blades is also more pronounced, allowing water to spill off the back of the blade more quickly, further decreasing torque.  And there is more scoop in both power faces of the blades which means more water catchment, and ultimately more efficiency.  The versatility of the adjustable shaft makes it possible for me to fit Elysia with a properly-sized paddle as well.  Finally, the durability of these paddles under the extra stress of paddling a loaded board is unmatched, an especially crucial detail on an expedition.

ULI and Werner Carve

Regarding boards, I am now paddling an 11-foot ULI inflatable board (www.uliboards.com), and Elysia is paddling a 10-foot Infinity (www.surftech.com).  I´ve mentioned that one should plan on going half as fast on an SUP expedition versus a sea kayak one, but that is a very rough equation and has much to with conditions—e.g., headwinds versus tailwinds.  An experienced SUP paddler has potential advantage in a tailwind, but any SUP paddler has an extreme disadvantage in a headwind.  Speed is also relative to what length and width of board one is paddling.  ULI has now come out with a 15-foot board, which I imagine would cruise along much faster than the 11-footer.  However, what one gains in speed by using a longer board, one will lose in performance in the surf zone, so it all depends on one´s preferences.  On this particular trip my preference is catching waves at otherwise inaccessible spots, not on making faster time or longer distance.

The ULI board is proving quite worthy, though, once I figure out how to better balance and secure the load.  The first day I had the load packed too far toward the front of the board, and I have now moved it a bit further back which cures the problem.  Also, my previous method of gluing E-Z plugs to the board and using nylon cord to strap down the load is not working as well either because the plugs do not adhere to the inflatable board material as well as they do to an epoxy board (at least with the glue I am using, which is a marine epoxy).  The method I´ve switched to is simply using two cam straps and wrapping them completely around the load and the board.  There may be a little drag on the hull, but I consider it miniscule, and far outweighed by the newly achieved security of the load to the board.  I flip in the surf again on my take-off, but no going back to shore to re-pack this time—the load holds steadfast to the board.  There is also the issue of increased board flex using an inflatable board versus an epoxy one, which tends to make paddling a loaded SUP slightly more unstable and slower.  But again I find that the positives of the ULI board far outweigh the negatives for SUP expeditioning.  I can travel anywhere in the world with this set-up without paying outrageous airline fares and worrying about the board getting damaged along the way.  And finally, I don´t have to sweat dinging or breaking a board on an expedition, where the consequences matter more.

An Extremely Diverse Ecosystem Under Pressure
Globally there is little good news for the state of our environment.  The Jalisco dry forest eco-region is no exception.  Tropical dry forest is the most threatened tropical ecosystem on earth.  And among this type of ecosystem the Jalisco dry forest, encompassing 16,218 square miles, is the most biodiverse in the world.  It hosts 1,100 species of mammals, 270 of birds, and 1,700 of reptiles and amphibians, and contains the highest rate of endemic species—84 animals and 110 plants found only in Mexico.  This forest is largely coastal, containing the section referred to as the “Costalegre”.  The area has been identified by Conservation International as falling into the Mesoamerican “Biodiversity Hotspot”, one of 34 in the world, and by World Wildlife Fund as one of the 200 global areas in most critical need of conservation.  These areas are selected for being the richest, rarest, and most endangered freshwater, marine, and terrestrial reservoirs of biota left on earth.

The Costalegre is undergoing an unprecedented environmental crisis due to unsustainable and unregulated development, tourism, agriculture, fishing, deforestation, contamination and poaching.  In collaboration with the University of Guadalajara´s Center for the Sustainable Development of Coastal Zones, I formed the nonprofit organization Tierralegre (www.tierralegre.org) two years ago.  Its mission is to protect the biodiversity and natural resources of Mexico´s Costalegre.  As I paddle this coastline I never take for granted that it is one of the least spoiled, most beautiful places on earth—for now.

Join the forum discussion on this post - (1) Posts

Prepping a Paddle

Few things in SUP cause more controversy than paddle prep. Some folks like their shaft bare, some like padded shafts, some like wax, some like mastic tape. I’ve played with about every combination and I’ve hit on the perfect preparation for me. I suspect you’ll like it too, even if you’re a bare shaft fan.

I say that because I’m a bare shaft guy. I don’t mind a little wax, but I don’t like the shaft to be too sticky, and I don’t like it being larger, or having a soft grip. Nothing saps my hand strength faster than a soft grip.

But I also don’t like my hands to slip, and the least bit of sunblock or oil on my hands or the shaft and my paddling is compromised. Yes, I clean my hands with sand and give the shaft a scrub, but you can transfer goop from other places easily. This approach solves the problem, giving positive traction without softening or thickening the grip. Once it’s done it lasts for many months–you never have to rewax.

Here’s the recipe:
The Grip: Locate your grip area and mark the shaft with pencil about ten inches above and below the grip point. If you’re not sure of your grip point, hold your paddle on your head, place on hand on the handle, the other on the shaft and bend your elbows at right angles so your forearms point straight up–the hand on the shaft will be in a nearly perfect grip position.

Start at the upper mark and wrap hockey tape around the shaft, starting with one full wrap and then overlapping the successive wraps for half the width of the tape. End with one full wrap.

Now wax the tape with warm water surf wax lightly over the full length and heavily in the grip area. You’ll be able to both see and feel the proper grip point. The wax embeds into the tape and doesn’t come off, even after months of use. The wax also cushions and strengthens the tape, making it last much longer. and finally the wax prevents the tape from being too sticky, as friction tapes sometimes get when the adhesive bleeds through the cloth.

The Blade: There are three good reasons for guarding the blade. First, people have been badly cut with unguarded blades. Second, the blade can chip up your board. And third, the blade can be damaged by hitting it’s edge on hard stuff.

Door edging or commercial blade guard works nicely, but it’s a bit thick for my taste. Mastic tape is good, but it’s fragile, especially if you stretch it thin. What I do is put on a layer of mastic, stretched very tight to make it thin, and then cover it with hockey tape. Finally I add a layer of wax to protect the tape and rub it with a cloth to smooth it. You’d be surprised at the difference in abrasion resistance between waxed and unwaxed fabric tape. The end result is a thin protective edging that won’t mark your board, lasts a very long time, and looks great.

Join the forum discussion on this post - (1) Posts

Jimmy Lewis Paddles–Very Different

Leave it to Jimmy to do it his own way. While everyone else is making very stiff carbon fibre shafts, Jimmy decided to add flex. Jimmy went through a lot of prototypes and a couple of different manufacturers to get a shaft with smooth flex along its length that is also extremely strong. The result is something you’ll have to try. Especially if you have beaten-up shoulders like mine or you’d like a little help catching waves.

The idea is this, to not only add some compliance to reduce the shock of paddling to your shoulders, back and arms, but also to extend the pull time when you’re pushing for a wave. The effect is most noticeable with a big blade, so Jimmy worked with Jimmy Terrell to use his molds for the Peahi and the Kanaha. I’ve tried both Quickblade versions in their carbon fiber standard form. I love the Kanaha Quickblade, the Peahi was too much for my shoulders.

In the Jimmy Lewis version I chose the Peahi so I could best appreciate the idea behind this paddle. To start with it’s a great looking paddle. The blade is clear fiberglass, tinted various colors. Mine is a bright, translucent orange. I cut the paddle to my standard surfing length–with the joint between the paddle and blade at eye level.

I took it out surfing on a pretty big day at Kanaha–overhead sets with the occasional bigger wave. On the paddle out to the reef i started having my doubts. The extreme flex of the shaft made the paddle seem weak, though I eventually realized that my board speed seemed to be the same as always. Once I reached the whitewater i found I was powering through just as I do with my other paddles. I realized that i wasn’t feeling the catch of the blade, just the steady pull, and that made it feel funny.

Shaft and blade in an un-flexed condition

Applying pressure creates a smooth curve, with the paddle still digging

The lineup was pretty crowded, so I moved to the far left to catch some waves backside, towards the channel. In the main lineup at Kanaha most folks prefer to go right. When I started paddling into the waves the paddle felt very odd. I’d plant the blade and give hard pull and the handle would flex a great deal. I made a few waves, and once in the wave the paddle and blade felt perfectly normal, but the launch felt very strange.

After about an hour I started to get it. You plant the blade well forward, pull like hell and don’t yank the blade out of the water to stroke again, just let it do it’s thing. The board accelerates a little slower at first, but the push is longer, so the board seems to get more acceleration at the end of the stroke, when a normal paddle would be not pushing at all. If you need a second stroke it works the same way, near the end of the stoke it feels like you’re being launched by a rubber band.

I thought at first that the idea was to give you sort of a flick forward as the paddle unbends, but that’s not it. The paddle feels like it extends the amount of time that power is being applied.

It’s really easy to catch waves once you get the way the paddle works. It’s particularly good when you’re feeling rushed, the big launch you get from the end of a single stroke will get you to the happy place. And at the end of a very, very long session–no shoulder pain.

Like anything different, this paddle takes some getting used to. It’s a new idea about how stand up paddles should work, and a good one. I’m looking forward to trying the Kanaha version as well. But in this form, the Peahi is winner for me and my dodgy shoulders.

The JL Peahi reminds me of the Superfreak sails I like so well. Yes, the all Mylar sails hold a more precise shape and give greater initial power. The Superfreak sails gather speed like a heavy car with a big motor–smooth and steady. There’s something very reassuring about this kind of power modulation. Not only is it easy to manage, but it also provides an extra bit of oomph when you expect a lull. The big blade also makes it very easy to turn the board with quick sweeping strokes, because you don’t flex the shaft much when you’re making those turning strokes.

All in all I’d say that anyone looking for an extremely effective surfing paddle should give one of these a try.

Join the forum discussion on this post - (1) Posts

New Werner Paddles

I received this news release from Werner Paddles yesterday and asked for pictures. They look pretty interesting, the shapes are unusual, I wish the picture showed the shape from the side and back as well, but here’s what I have:
For Release: Trade: August 25, 2008

Werner Expands Stand Up Paddle Offerings
Werner Paddles has announced the introduction of two new Stand Up Paddles: The Werner Advantage and the Werner Carve. Both paddles will be available to ship beginning September 01, 2008.

As participation explodes in the Stand Up Paddle category, Werner is responding with new paddle designs that focus on the two aspects of the sport, touring and surfing.

The new Werner Advantage
The Advantage is a Premium fiberglass laminate construction blade with a modified tear drop shape designed to optimize straight ahead efficiency for touring.

The new Werner Carve

The Carve consists of the same construction as the Advantage but the shape is smaller, longer and more slender, specifically designed for dynamic surfing and turning.

Both the Advantage and the Carve come with a fiberglass oval indexed shaft and ABS Palm-grip. Werner offers three shaft configurations. The 1-piece is the lightest weight option and is least expensive ($219).

The 2–piece is perfect for paddlers who travel with their paddle ($234). The Adjustable length telescopes with four settings, each 1.5 inches apart; perfect for those individuals who move between touring and surfing ($259).

“Stand Up Paddling is a real growth opportunity for surf and paddle sports dealers. We are excited to expand our Stand Up Paddle offerings to respond to the specific demands of the market,” says Jim Miller, Werner’s Marketing Manger.

Werner Paddles is the leading manufacturer of high quality kayak, canoe, and stand up paddles, operating near the banks of the Skykomish River in Sultan, WA. For more information call 800.275.3311 or visit us at www.wernerpaddles.com

Join the forum discussion on this post - (1) Posts

Waterproof Artwork: Malama Paddles

A custom wood paddle is a special thing. It’s Paul Newman showing up in the bar with a Balabushka. It sets a certain expectation, creates a certain frisson. Of course on the downside, you’d better be able to play a little fricken pool.

Whether it’s a Gillespie, an Ernie Johnson Big Stick, a Kinimaka, or a Malama, a paddle made by one of these masters will make you smile every time you pull it from it’s bag. Even more important is the special qualities of wood construction. They aren’t as light, but they are easier on your shoulders and arms. My guess is it’s the damping of the wood. All I know is that as much as I love my Quickblade, and as impressed as i was with the Warner’s tough lightness, my Malama is good to my torn up shoulders. I use carbon fiber paddles, but if I’m going long, it’s all wood. [Read more]
